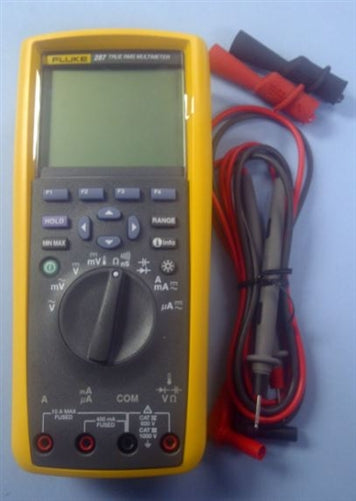

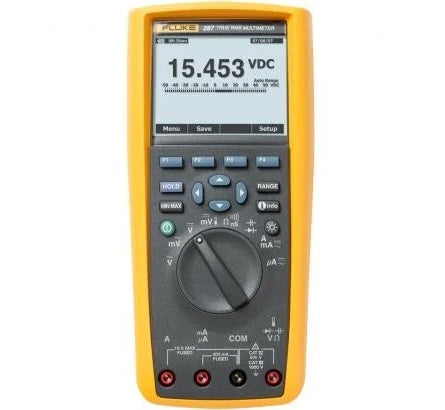

The Fluke 287 True-RMS Electronics Logging Multimeter with Trend Capture quickly documents design performance and graphically displays what happened. Its’ unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. Maximum voltage between any terminal and earth ground : 1000V
Now with Zoom Capabilities! As promised, we continue to add capabilities to the 287 multimeter. Version 1.1 upgrade includes a variety of new features including a zooming ability to view and analyze Trend Capture data at five (5) times magnification. It is the ultimate handheld tool for demanding applications that require high-precision.
Features:
Multiple sets of measurement, information can simultaneously be displayed at the same time.
Logging function with Trend Capture is an essential tool for documenting the performance of your designs, processes or systems, or unattended monitoring while you work on other projects. It plots measurements as a single line to help detect signal anomalies over time. Using on-board Trend Capture, you can graphically view logged readings without a PC.
Log multiple sessions or log data continuously for over 200 hours.
Field upgradeable firmware and expandable meter lets you stay current as new capabilities are added
Optional FlukeView forms software and optical interface cable (FVF-SC2) enables you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents
Optional magnetic hanger allows you to hang the meter for easy viewing while freeing your hands to focus on the job
Meter functions : Ac and DC voltage, DC mV, temperature, ohms, continuity, nS, capacitance, diode test, AC amps, AC mA, DC amps, DC mA, AC uA, DC uA
Special functions : Data hold, min/max, auto/manual range, info, backlight, F1/F2/F3/F6
