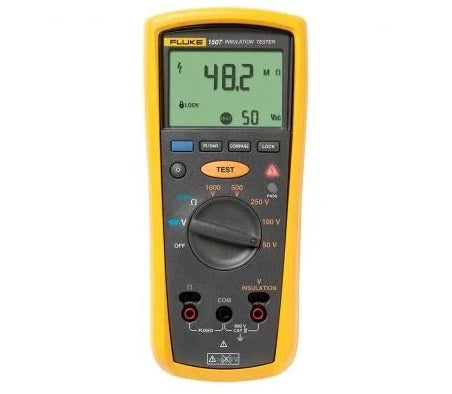

Fluke 1507 Insulation Resistance Tester / Megger, 50V 100V 250V 500V 1000V Test Voltage

Product overview: Fluke 1507 Insulation Resistance Tester

The Fluke 1507 is a versatile, compact, handheld insulation tester for advanced industrial and electrical insulation testing. Its multiple test voltages make it the ideal tool for many troubleshooting, commissioning, and preventative maintenance applications.

Take advantage of the 1507 full feature set to easily and quickly perform advanced insulation resistance testing. Its handy size and light weight make it easy to pack and use. Additional features, like the remote probe, save both time and money especially when performing repetitive tests. And its reasonable price and rugged reliability make it an excellent value.

Other useful capabilities:

Performs insulation tests from 0.01 MΩ to 10 GΩ
Includes live circuit detection to prevent insulation test if voltage >30 V is detected
Includes auto-discharge of capacitive voltage for added user protection
Measures AC/DC voltage from 0.1 V to 600 V and resistance from 0.01 Ω to 20.00 kΩ
Provides lo-ohms earth-bond continuity (200 mA)
Simplifies repetitive or hard-to-reach testing with the remote test probe
Saves battery power with auto power off
Presents results on a large, backlit display
Features CAT IV 600 V overvoltage category rating
Comes with remote probe, test leads, test probes, alligator clips and one-year warranty
Accepts optional Fluke TPAK magnetic hanging system to free your hands for other work
Runs on four AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation tests

Key features

Rugged, compact advanced insulation resistance tester for electrical contractors and industrial and commercial electricians
Automatically calculates Polarization Index and Dielectric Absorption Ratio
Makes repetitive tests simple and easy with a Compare (Pass/Fail) function
Offers multiple insulation test voltages: 50 V, 100 V, 250 V, 500 V, and 1000 V

(Adobe Reader required to read datasheet)

Fuse selection guide


IP Rating : IP40

Storage Temperature : -40°C to 60°C (-40°F to 140°F)
Operating Temperature : -20°C to 55°C (-4°F to 131°F)

Vibration : Random, 2 g, 5-500 Hz per MIL-PRF-28800F, Class 2 instrument Shock : 1 meter drop per IEC 61010-1 2nd Edition (1 meter drop test, six sides, oak floor)
Electromagnetic compatibility : In an RF field of 3 V/M, accuracy = specified accuracy (EN 61326-1:1997)
Safety : Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 NO. 61010-1-04, and IEC/EN 61010-1 2nd Edition for measurement category IV 600 V (CAT IV)
Certifications : CSA per standard CSA/CAN C22.2 No. 61010.1-04; TUV per standard IEC/EN 61010-1 2nd Edition

Batteries : Four AA batteries (NEDA 15A or IEC LR6)
Battery Life :
Insulation test use : Tester can perform at least 1000 insulation tests with fresh alkaline batteries at room temperature. These are standard tests of 1000 V into 1 MΩ with a duty cycle of 5 seconds on and 25 seconds off.
Resistance measurements : Tester can perform at least 2500 earth bond resistance measurements with fresh alkaline batteries at room temperature. These are standard tests of 1 Ω with a duty cycle of 5 seconds on and 25 seconds off.

Size : 5.0 cm H x 10.0 cm W x 20.3 cm L (1.97 in H x 3.94 in W x 8.00 in L)
Weight : 550 g (1.2 lb)

Warranty : 3 years
