Fluke

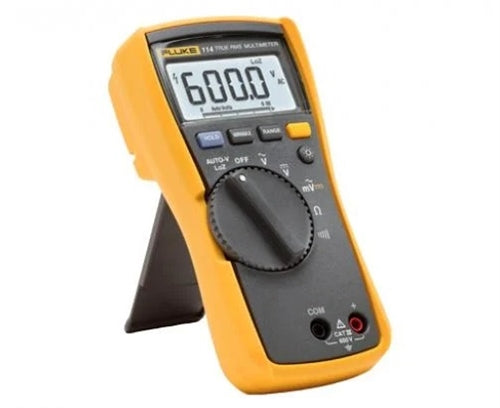

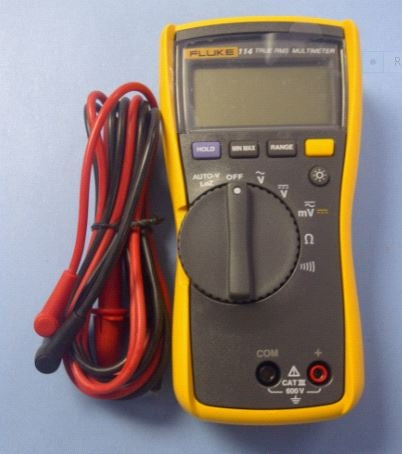

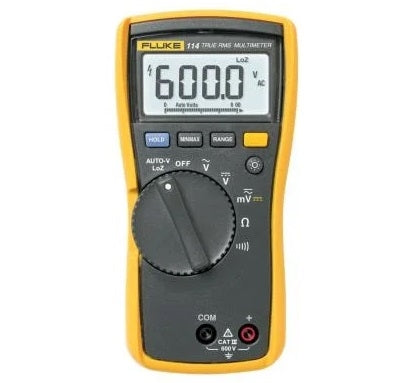

Fluke 114 Electrical Multimeter

Fluke 114 Electrical Multimeter

Call to Order. Calgary: (403) 243-7211 / Saskatoon: (306) 249-5144

SKU: B&E Part Number:  114

Regular price $286.70 CAD /Each
Regular price /Each Sale price $286.70 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 1

Status: In Stock
Sold and Shipped to Canadian Customers Only
Quantity
View full details

Collapsible content

Product Description

Fluke 114 digital multimeter is the ideal choice for go/no-go testing

Designed for easy one-handed operation, the compact Fluke 114 True RMS digital multimeter is the perfect troubleshooting tool for go/no go testing. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. And you can use the LoZ function to identify so-called ghost voltage and prevent false readings.

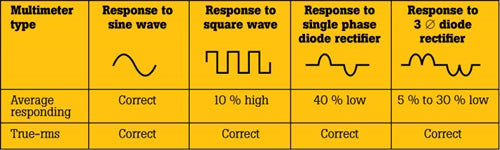

The Fluke 114 displays True-RMS voltage and current readings with 6000 count resolution, and tests frequency, continuity and resistance. A large white LED backlight aids work in poorly lit areas. And its easy-open battery access door makes battery changes easy.

A great choice for everyday troubleshooting, the Fluke 114 Electrical Multimeter is CAT III 600 V safety rated and is a compact True-RMS meter.

Fluke 114 multimeters are independently tested for safe use in CAT III 600V environments

Other useful features:

  • Features a compact ergonomic design for one-handed operation
  • Comes with an holster with probe holders for easy storage
  • Features manual and automatic ranging
  • Safety rates CAT III 600 V
  • Fits into optional ToolPak™ magnetic hanger for hands-free operation

Technical Info


(Adobe Reader required to read datasheet)

Display Digital : 6,000 counts, updates 4 per second
Bar graph : 33 segments, updates 32 per second

Operating Temperature : -10 °C to + 50 °C
Storage Temperature : -40 °C to + 60 °C
Battery type : 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life : 400 hours typical, without backlight

Mechanical & General Specifications
Size: 167 x 84 x 46 mm (6.57" x 3.31" x 1.82")
Weight : 550 g

Warranty: 3 years
For any questions on the warranty, please contact Fluke’s service centre at 1-800-36-FLUKE (1-800-363-5853) or email canadaservice@fluke.com
