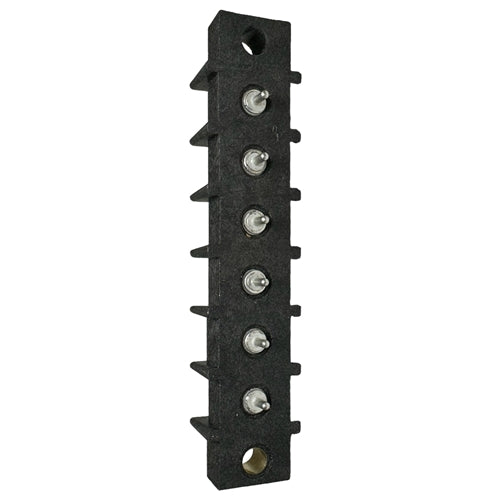

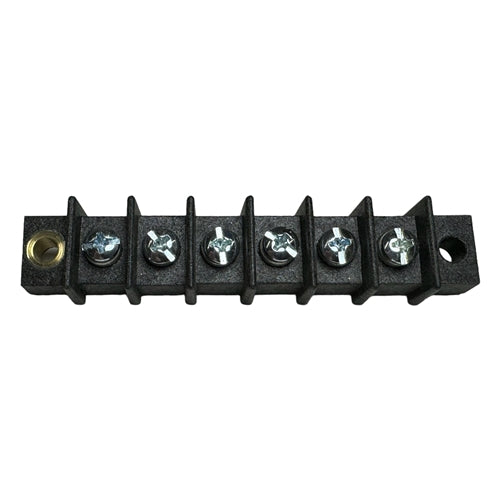

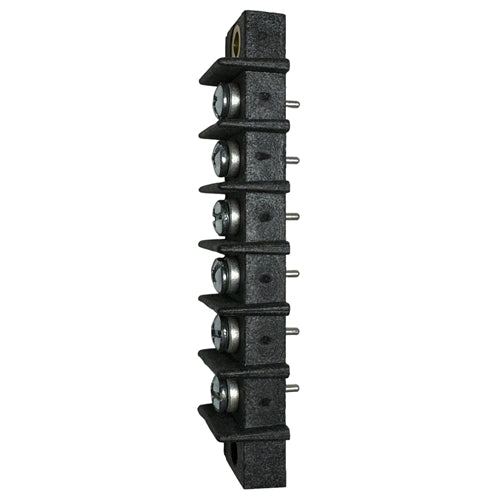

Curtis GBPX6 Terminal Strip 6 Pole

Series GB, .4375" (7/16") 11.11mm terminal block. Ideal for Sub-Chassis or Through-Panel Applications Printed circuit board design with .062" diameter tin
Brand name(s) : Curtis Industries

Features:
Superior Construction
Feed-through insulators integral to the moldings
20 amps/up to 600 volts, 22 AWG to 12 AWG
Compact barrier-type design
Break-resistant, high-impact thermoplastic
No pin twist. Fewer broken solder joints.

Versatility:
No costly insulation or mounting set-up
1/4" terminal-to-ground clearance (even through 1/16" chassis)
7/16" center-to-center spacing

UL Recognized / CSA Certified
