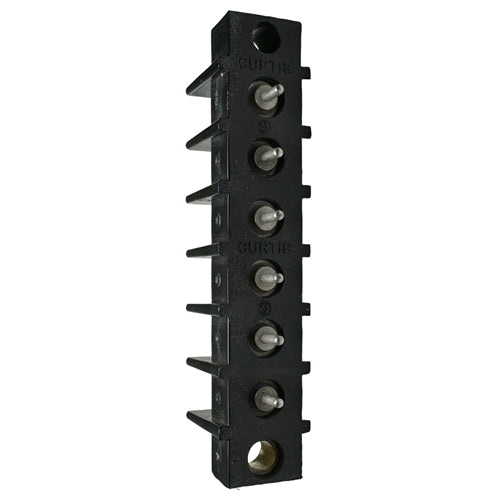

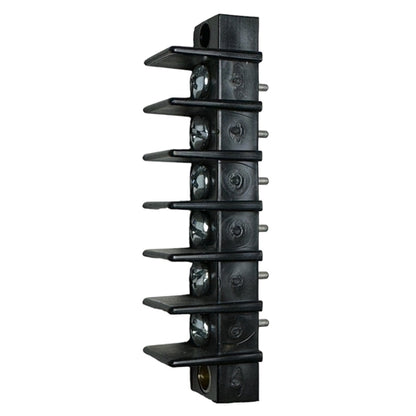

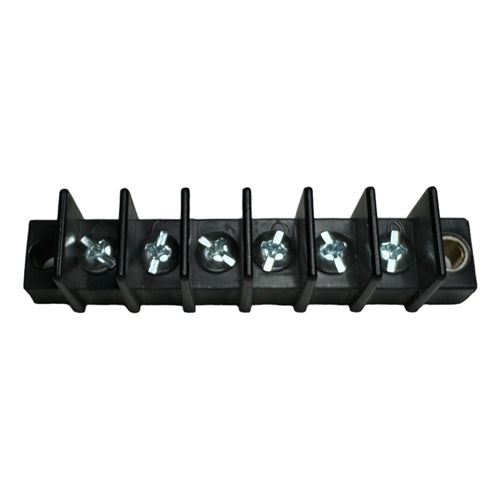

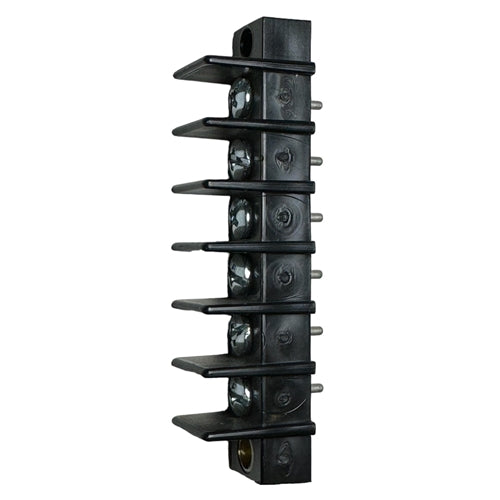

Curtis CBP6 Terminal Strip 6 Pole

.375" (3/8") 9.52mm Center-to-Center terminal block Spacing Ideal for electronic and control feed-through applications where space is limited
Brand name(s) : Curtis Industries

Features:

Compact Barrier-Type Design - Especially suited for electronic and control feed-thru applications where space saving is required
Fully Insulated Feed-Thru, Disconnect, Printed Circuit or Surface Connection - .375" center- to-center spacing
Improved High Barrier-Type Design - Meets industrial control clearance and creepage requirements set by UL. Rated 20A up to 600V
Suitable for High Moisture and Dust Environments - Blocks are made of break resistance, high-impact black thermoplastic
Solid Construction - Terminals are molded in place with precision screw machined brass inserts which will not twist. Virtually eliminating broken solder joints while providing a full mechanical thread system
Broad Wire Rage - No. 6-32 external terminal screw UL recognized for No. 22AWG to No. 12AWG
Recognition and Listing - UL recognized and CSA certified

Image for illustrative purpose only

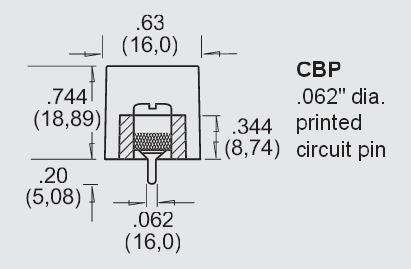

Center-to-Center Spacing: .375" (9.52mm)
Wire Range: No. 22AWG to No. 12AWG
Current Rating: 20 amps
Voltage Rating: CSA 300V

Screw Terminals:
UL 600V - Limited Energy Devices
UL 300V - General Industrial

Quick Connects:
UL 125V - General Appliance

Tightening Torque
Wire Binding Screw : 12 in.-lb.
Wire Clamps : 20 in.-lb.

Housing: Material Thermoplastic Polyester
Continuous Use Temp. (UL Index) 140°C (284°F)
Flammability Rating : 94V-0
Water Absorption : (24 hrs. % wt. gain) .08%
Chemical Resistance Excellent in most environments
Breakdown Voltage:
Terminal - Terminal 7,000V Typical.
Terminal - Ground 6,000V Typical
Terminals: Solid Brass
Solder style terminals are plated with high-purity tin for optimum solderability
Contact Resistance: .002 Ohm Typical
