Circuit Test

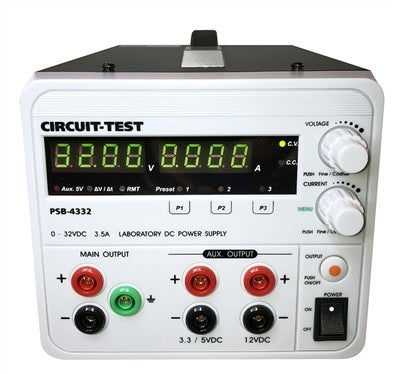

Circuit-Test PSB-4332 Triple Output Linear Power Supply Variable 32VDC/3.5A; Fixed 3.3 or 5VDC@0.8A & 12VDC@0.8A

Circuit-Test PSB-4332 Triple Output Linear Power Supply Variable 32VDC/3.5A; Fixed 3.3 or 5VDC@0.8A & 12VDC@0.8A

SKU: B&E Part Number:  PSB4332

Regular price $431.25 CAD /Each
Regular price /Each Sale price $431.25 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 0

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
Quantity
View full details

Collapsible content

Product Description

32VDC@3.5A, fixed 3.3vdc or 5vdc / 12vdc triple output variable power supply - remote programmable
A high precision laboratory grade linear power supply with advanced MCU control and USB interface bundled with PC control software and SCPI command sets for remote control, monitoring and data logging or integrating with test instruments via SCPI.
Brand name(s) : Circuit Test

For test leads - not included :
TLE248x stacking banana plug to stacking banana plug
TLE336x stacking banana plug to hook clip
TLE548x stacking banana plug to alligator clip

Features:
Variable Output: 0.1-32VDC / 0-3.5A
Fixed Output : 3.3 or 5VDC (selectable) / 800ma, 12VDC / 800ma
Constant voltage or constant Current with automatic crossover
Fully isolated outputs
Output on-off switch on front panel
Rotary encoder for easy tuning of voltage and current
3 user defined voltage and current presets
Wave form generator - The cyclic waveform generation is programmable and operated using front panel controls without PC.
4-Digit LED voltage and current displays
