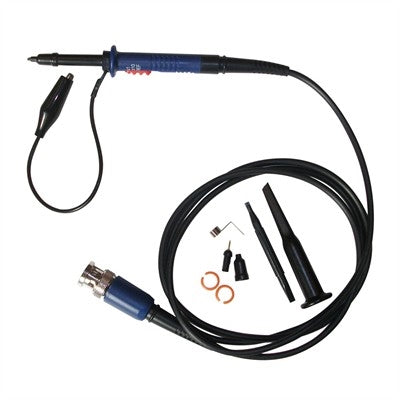

Circuit-Test OP-100A Oscilloscope Probe 100MHz
Circuit-Test OP-100A Oscilloscope Probe 100MHz
SKU: B&E Part Number: OP100
B&E Calgary: 2
B&E Saskatoon: 3
Status: In Stock
Couldn't load pickup availability

Collapsible content
Product Description
Oscilloscope Probe 100MHz
Features:
Working Voltage: 400V dc 600V peak 200V RMS
Band width: 100MHz
Division Ratio: x1 / x10 Switchable
Rise time: x1 58ns / x10 3.5ns
Input Resistance: x1 1M Ohm / x10 10M Ohm
Input Capacitance: x1 47pF / x10 17pF
Compensation Range: 10-35PF
Cable Length: 120cm
Temperature Coefficient: <200 PPM / C
DC Accuracy: <1%
Operating Temperature: -10 to +55°C
