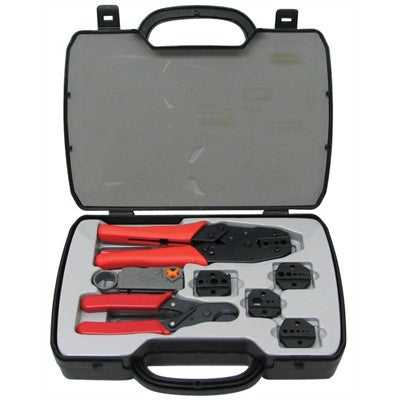

Circuit-Test CTK-3001 Ratchet Crimp Tool Kit, Includes Cable Cutter, Rotary Coaxial Stripper & 5 Die

Circuit-Test CTK-3001 Ratchet Crimp Tool Kit, Includes Cable Cutter, Rotary Coaxial Stripper & 5 Die

B&E Part Number:  CTK-3001

$149.88 CAD /Each
/Each $149.88 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

Complete Hex Crimp Ratchet tool kit for BNC, CATV, RCA and many other types of RF connectors. Crimp RG6, 8, 11, 58, 59, 62, 174, 179, 213, Belden 8218, Fiber Optic cables and more. Kit includes ratchet tool frame, 5 sets of dies, cable cutter, rotary cable stripper, Phillips screwdriver and carrying case.

Features:

  • 6-1/2" Cable cutter
  • 4" Rotary Coaxial stripper
  • 5" Blade #2 Phillips screwdriver
  • Die# 236A: 0.255" (6.5mm) / 0.213" (5.41mm) / 0.187" (4.75mm) / 0.068" (1.72mm)
  • Die# 336C: 0.319" (8.1mm) / 0.256" (6.5mm) / 0.213" (5.41mm) / 0.068" (1.72mm)
  • Die# 336G: 0.255" (6.5mm) / 0.213" (5.41mm) / 0.137" (3.48mm) / 0.100" (2.54mm) / 0.068" / (1.72mm) / 0.043" (1.09mm)
  • Die# 336J: 0.178" (4.52mm) / 0.151" (3.84mm) / 0.128" (3.25mm) / 0.078" (1.98mm) / 0.068" (1.72mm) / 0.042" (1.07mm)
  • Die# 336K: 0.429" (10.9mm) / 0.128" (3.25mm) / 0.100 (2.54mm)
