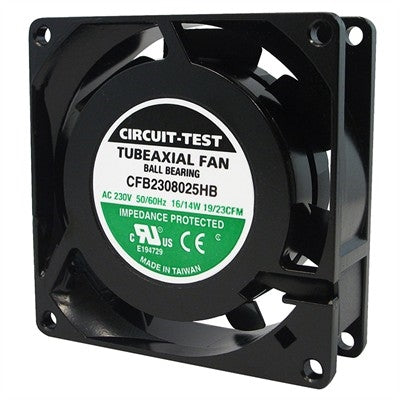

Circuit-Test CFB2308025HB 230VAC Ball Bearing Fan 80mm x 80mm x 25mm 19/23CFM 32/35dB 2600/3100RPM

Circuit-Test CFB2308025HB 230VAC Ball Bearing Fan 80mm x 80mm x 25mm 19/23CFM 32/35dB 2600/3100RPM


This Item is Available by SPECIAL ORDER

B&E Part Number:  CFB2308025HB

$29.82 CAD /Each
/Each $29.82 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230VAC die-cast aluminum fan 80mm x 25mm 19/23 CFM - ball bearing


Technical Info


Features:
Dimensions: 80 x 80 x 25mm (3.15 x 3.15 x 1")
Mounting Center: 71.5mm (2.82")
Rating: 230VAC
Current: 0.09/0.07 Amps
Power: 16/14 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2600/3100 RPM
Noise: 32/35 dBA
Max Air: 19/23 CFM
Max Pressure: 3.6/5.5 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: 1/8" Terminals
Weight: 260g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
