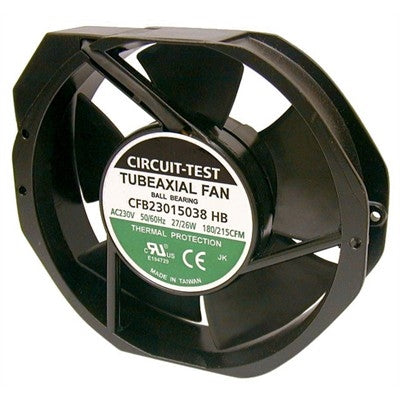

Circuit-Test CFB23015038HB 230VAC Ball Bearing Fan 150mm x 172mm x 38mm 212CFM 58dB 26W 0.11A 3400RPM 1/8" Terminals

Circuit-Test CFB23015038HB 230VAC Ball Bearing Fan 150mm x 172mm x 38mm 212CFM 58dB 26W 0.11A 3400RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFB23015038HB

$74.52 CAD /Each
/Each $74.52 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 4
B&E Saskatoon: 2

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230vac ball bearing fan, 150mm x 38mm, 177 / 212 CFM
Brand name(s) : Circuit Test

Technical Info


Dimensions: 150 x 172 x 38mm (5.9 x 6.8 x 1.5")
Mounting Center: 162mm (6.38")
Rating: 230VAC
Current: 0.11/0.11 Amps
Power: 27/26 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2850/3400 RPM
Noise: 54/58 dBA
Max Air: 177/212 CFM
Max Pressure: 17/19 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: 1/8" Terminals
Weight: 720g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
