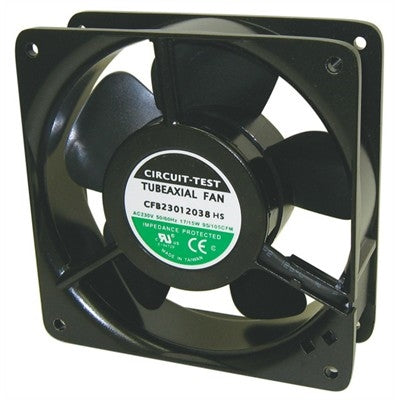

Circuit-Test CFB23012038HS 230VAC Sleeve Bearing Fan 120mm x 120mm x 38mm 95/105CFM 42/46dB 2700/3100RPM

Circuit-Test CFB23012038HS 230VAC Sleeve Bearing Fan 120mm x 120mm x 38mm 95/105CFM 42/46dB 2700/3100RPM

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available online by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

B&E Part Number:  CFB23012038HS

$24.65 CAD /Each
/Each $24.65 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

230VAC die-cast aluminum 120mm x 38mm 95/105 CFM - sleeve bearing


Technical Info


Features:
Dimensions: 120 x 120 x 38mm (4.7 x 4.7 x 1.5")
Mounting Center: 105mm (4.13")
Rating: 230VAC
Current: 0.10/0.08 Amps
Power: 17/15 W
Frequency: 50/60Hz
Bearing: Sleeve
Speed: 2700/3100 RPM
Noise: 42/46 dBA
Max Air: 95/105 CFM
Max Pressure: 8.0/8.0 mmH2O
Temperature: -20 to +70 C
Hours: 15000
Termination: 1/8" Terminals
Weight: 530g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
