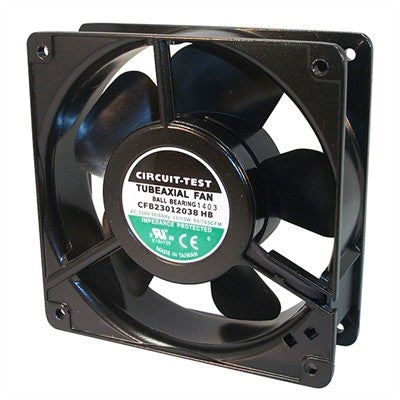

Circuit-Test CFB23012038HB 230VAC Ball Bearing Fan 120mm x 120mm x 38mm 105CFM 46dB 17W 0.10A 3100RPM 1/8" Terminals

Circuit-Test CFB23012038HB 230VAC Ball Bearing Fan 120mm x 120mm x 38mm 105CFM 46dB 17W 0.10A 3100RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFB23012038HB

$32.19 CAD /Each
/Each $32.19 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 6
B&E Saskatoon: 6

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230vac ball bearing fan, 120mm x 38mm, 92 / 106 CFM
Brand name(s) : Circuit Test

Technical Info


Dimensions: 120 x 120 x 38mm (4.7 x 4.7 x 1.5")
Mounting Center: 105mm (4.13")
Rating: 230VAC
Current: 0.10/0.08 Amps
Power: 17/15 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2700/3100 RPM
Noise: 42/46 dBA
Max Air: 92/106 CFM
Max Pressure: 8.0/8.0 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: 1/8" Terminals
Weight: 530g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
