Circuit Test

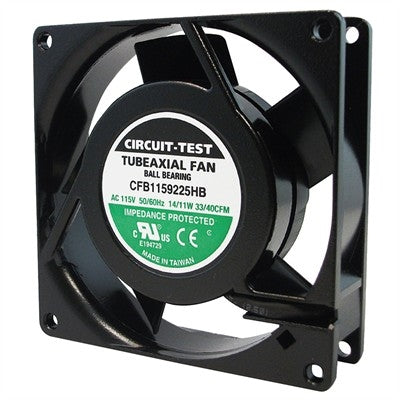

Circuit-Test CFB1159225HB 115VAC Ball Bearing Fan 92mm x 92mm x 25mm 40CFM 36dB 11W 0.12A 3000RPM 1/8" Terminals

Circuit-Test CFB1159225HB 115VAC Ball Bearing Fan 92mm x 92mm x 25mm 40CFM 36dB 11W 0.12A 3000RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFB1159225HB

$32.71 CAD /Each
/Each $32.71 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 4
B&E Saskatoon: 0

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

115vac ball bearing fan, 92mm x 25mm, 40 CFM
Brand name(s) : Circuit Test

Technical Info


Dimensions: 92 x 92 x 25mm (3.62 x 3.62 x 1")
Mounting Center: 82mm (3.25")
Rating: 115VAC
Current: 0.12 Amps
Power: 11 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 3000 RPM
Noise: 36 dBA
Max Air: 40 CFM
Max Pressure: 5.3 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: 1/8" Terminals
Weight: 280g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
