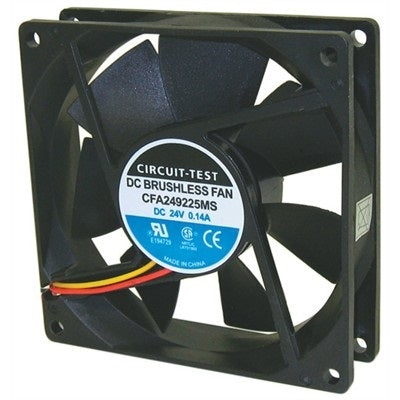

Circuit-Test CFA249225MS 24VDC Sleeve Bearing Fan 92mm x 92mm x 25mm 74.5CFM 44dB 3.4W 0.14A 2500RPM 3 Wire

Fan 24VDC, 92mm x 25mm, 50 CFM, Sleeve Bearing

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:

Dimensions: 92 x 92 x 25mm (3.62 x 3.62 x 1")

Mounting Center: 82mm (3.25")

Rating: 24VDC

Current: 0.14 Amps

Power: 3.36 W

Bearing: Sleeve

Speed: 2500 RPM

Noise: 34 dBA

Max Air: 50.5 CFM

Max Pressure: 3.5 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: Wire leads

Weight: 120g

Impeller: Glass fibre reinforced plastic 94V-0 PBT

Frame: Glass fibre reinforced plastic 94V-0 PBT
