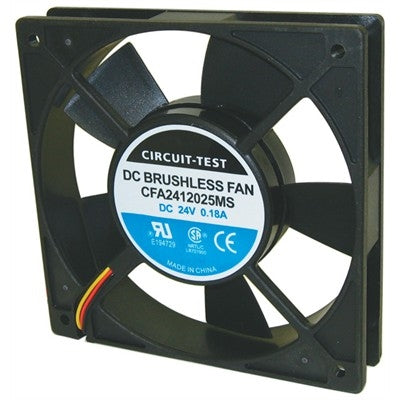

Circuit-Test CFA2412025MS 24VDC Sleeve Bearing Fan 120mm x 120mm x 25mm 74.5CFM 44dB 4.3W 0.18A 2500RPM 3 Wire

Fan 24VDC, 120mm x 25mm, 74.5 CFM, Sleeve Bearing

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:

Dimensions: 120 x 120 x 25mm (4.7 x 4.7 x 1")

Mounting Center: 104.8mm (4.13")

Rating: 24VDC

Current: 0.18 Amps

Power: 4.32 W

Bearing: Sleeve

Speed: 2500 RPM

Noise: 43.84 dBA

Max Air: 74.5 CFM

Max Pressure: 3.8 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: Wire leads

Weight: 150g

Impeller: Glass fibre reinforced plastic 94V-0

Frame: Die-cast aluminum
