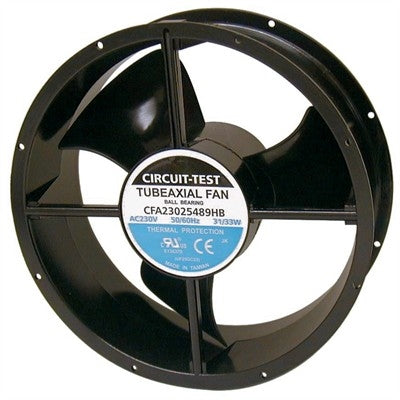

Circuit-Test CFA23025489HB 230VAC Ball Bearing Fan 254mm x 254mm x 89mm 460/550CFM 52/55dB 1400/1650RPM 1/8" Terminals

Circuit-Test CFA23025489HB 230VAC Ball Bearing Fan 254mm x 254mm x 89mm 460/550CFM 52/55dB 1400/1650RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFA23025489HB

$126.11 CAD /Each
/Each $126.11 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230VAC die-cast aluminum fan 254mm x 89mm 460/550 CFM - ball bearing

Technical Info


Features:
Dimensions: 254mm dia x 89mm thick (10 x 3.5")
Mounting Center: 246mm (9.72")
Rating: 230VAC
Current: 0.14/0.14 Amps
Power: 31/33 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 1400/1650 RPM
Noise: 52/55 dBA
Max Air: 460/550 CFM
Max Pressure: 8/10 mmH2O
Temperature: -40 to +70 C
Hours: 35000-50000
Termination: 1/8" Terminals
Weight: 1900g
Impeller: Glass fibre reinforced plastic
