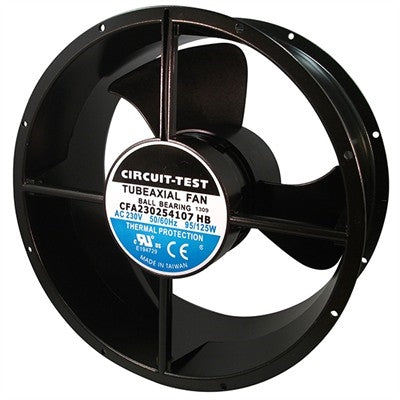

Circuit-Test CFA230254107HB 230VAC Ball Bearing Fan 254mm x 254mm x 107mm 780/850CFM 63/65dB 2600/2750RPM 1/8" Terminals

Circuit-Test CFA230254107HB 230VAC Ball Bearing Fan 254mm x 254mm x 107mm 780/850CFM 63/65dB 2600/2750RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFA230254107HB

$138.33 CAD /Each
/Each $138.33 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230VAC die-cast aluminum fan 254mm x 107mm 780 / 850 CFM - ball bearing




Technical Info


Features:
Dimensions: 254 x 254 x 107mm (10 x 10 x 4.25")
Rating: 230VAC
Current: 0.42/0.50 Amps
Power: 95/125 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2600/2750 RPM
Noise: 63/65 dBA
Max Air: 780/850 CFM
Max Pressure: 19/17.5 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: 1/8" Terminals
Weight: 2500g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
