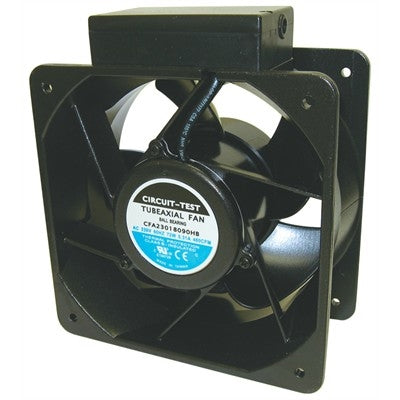

Circuit-Test CFA23018090HB 230VAC Ball Bearing Fan 180mm x 180mm x 90mm 390/460CFM 54/59dB 2850/3400RPM, Screw Terminals

Circuit-Test CFA23018090HB 230VAC Ball Bearing Fan 180mm x 180mm x 90mm 390/460CFM 54/59dB 2850/3400RPM, Screw Terminals

Special Orders

With access to thousands of items, we couldn't possibly stock everything! This is why we've made so many items available online by special order.

Most special order items ship from within Canada and generally arrive from our vendors 7-10 business days before they are shipped to you, or made available for pickup in-store (Calgary & Saskatoon). However, some items may take longer due to supplier availability.

Have questions or don't see what you're looking for? Please contact us and we'll do our best to find what you need.

B&E Part Number:  CFA23018090HB

$153.71 CAD /Each
/Each $153.71 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 0
B&E Saskatoon: 0

Status: Available to Order
Spend over $249 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

230VAC die-cast aluminum fan 180mm x 90mm 390 / 460 CFM - ball bearing

Technical Info


Features:
Dimensions: 180 x 180 x 90mm (7.125 x 7.125 x 3.6")
Mounting Center: 162mm (6.38")
Rating: 230VAC
Current: 0.42/0.31 Amps
Power: 75/72 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2850/3400 RPM
Noise: 54/59 dBA
Max Air: 390/460 CFM
Max Pressure: 20/27 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: Screw Terminals
Weight: 2200g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
