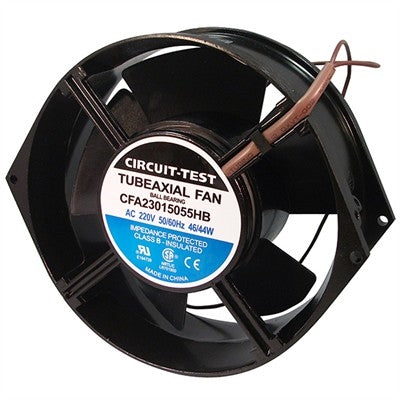

Circuit-Test CFA23015055HB 230VAC Ball Bearing Fan 150mm x 150mm x 55mm 190/230CFM 50/53dB 2850/3400RPM, Wire Leads

Circuit-Test CFA23015055HB 230VAC Ball Bearing Fan 150mm x 150mm x 55mm 190/230CFM 50/53dB 2850/3400RPM, Wire Leads

B&E Part Number:  CFA23015055HB

$64.75 CAD /Each
/Each $64.75 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 2
B&E Saskatoon: 0

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

230VAC die-cast aluminum fan 150mm x 55mm 190 / 230 CFM - ball bearing







Technical Info


Features:
Dimensions: 150mm dia x 55mm thick (5.9 x 2.2")
Mounting Center: 162mm (6.38")
Rating: 230VAC
Current: 0.28/0.24 Amps
Power: 46/40 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 2850/3400 RPM
Noise: 50/53 dBA
Max Air: 190/230 CFM
Max Pressure: 12.3/13.7 mmH2O
Temperature: -30 to +75 C
Hours: 35000-50000
Termination: Wire leads
Weight: 1000g
Impeller: Glass fibre reinforced plastic 94V-0
Frame: Die-cast aluminum
