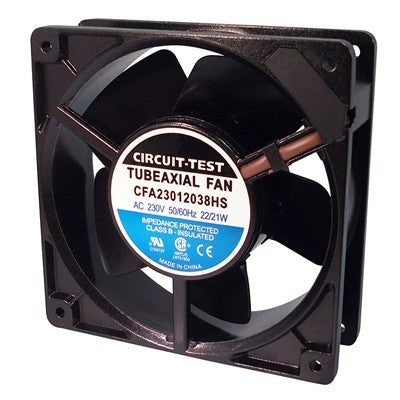

Circuit-Test CFA23012038HS 230VAC Sleeve Bearing Fan 120mm x 120mm x 38mm 105CFM 46dB 22W 0.14A 3000RPM 1/8" Terminals

Circuit-Test CFA23012038HS 230VAC Sleeve Bearing Fan 120mm x 120mm x 38mm 105CFM 46dB 22W 0.14A 3000RPM 1/8" Terminals


Fan Cord NOT Included. For Cord Selection, Click HERE
For Fan Guard & Filter Selection, Click HERE

B&E Part Number:  CFA23012038HS

$38.50 CAD /Each
/Each $38.50 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 7
B&E Saskatoon: 5

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

Fan 230VAC, 120mm x 38mm, 120 CFM, Sleeve bearing

Features:

Dimensions: 120 x 120 x 38mm (4.7 x 4.7 x 1.5")

Mounting Center: 105mm (4.13")

Rating: 230VAC

Current: 0.14/0.13 Amps

Power: 22/21 W

Frequency: 50/60Hz

Bearing: Sleeve

Speed: 2700/3000 RPM

Noise: 46/50 dBA

Max Air: 106/120 CFM

Max Pressure: 7.6/7.0 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: 1/8" Terminals

Weight: 600g

Impeller: Steel

Frame: Die-cast aluminum
