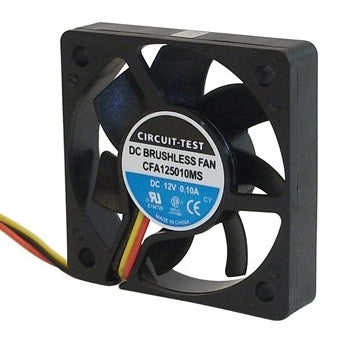

Circuit-Test CFA125010MS 12VDC Sleeve Bearing Fan 50mm x 50mm x 10mm 8.8CFM 29dB 1.2W 0.1A 4000RPM 3 Wire

Fan 12VDC, 50mm x 10mm, 8.8 CFM, Sleeve Bearing

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:

Dimensions: 50 x 50 x 10mm (1.97 x 1.97 x 0.39")

Mounting Center: 40mm (1.57")

Rating: 12VDC

Current: 0.1 Amps

Power: 1.2 W

Bearing: Sleeve

Speed: 4000 RPM

Noise: 29 dBA

Max Air: 8.79 CFM

Max Pressure: 1.46 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: Wire leads

Weight: 20g

Impeller: Glass fibre reinforced plastic 94V-0 PBT

Frame: Glass fibre reinforced plastic 94V-0 PBT
