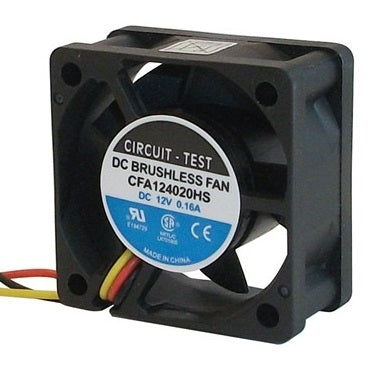

Circuit-Test CFA124020HS 12VDC Sleeve Bearing Fan 40mm x 40mm x 20mm 8.5CFM 31dB 2.0W 0.16A 7000RPM 3 Wire

Fan 12VDC, 40mm x 20mm, 8.5 CFM, Sleeve Bearing

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:

Dimensions: 40 x 40 x 20mm (1.57 x 1.57 x 0.79")

Mounting Center: 32mm (1.26")

Rating: 12VDC

Current: 0.16 Amps

Power: 1.92 W

Bearing: Sleeve

Speed: 7000 RPM

Noise: 31 dBA

Max Air: 8.5 CFM

Max Pressure: 5.31 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: Wire leads

Weight: 40g

Impeller: Glass fibre reinforced plastic 94V-0 PBT

Frame: Glass fibre reinforced plastic 94V-0 PBT
