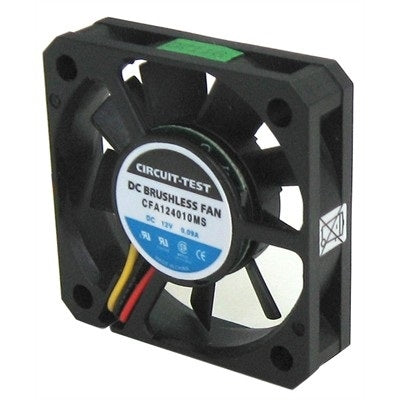

Circuit-Test CFA124010MS 12VDC Sleeve Bearing Fan 40mm x 40mm x 10mm 6.5CFM 24dB 1.08W 0.09A 5000RPM 3 Wire

Fan 12VDC, 40mm x 10mm, 6.5 CFM, Sleeve Bearing

Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:

Dimensions: 40 x 40 x 10mm (1.57 x 1.57 x 0.39")

Mounting Center: 32mm (1.26")

Rating: 12VDC

Current: 0.09 Amps

Power: 1.08 W

Bearing: Sleeve

Speed: 5000 RPM

Noise: 24 dBA

Max Air: 6.48 CFM

Max Pressure: 1.87 mmH2O

Temperature: -10 to +70 C

Hours: 20000-30000

Termination: Wire leads

Weight: 18g

Impeller: Glass fibre reinforced plastic 94V-0 PBT

Frame: Glass fibre reinforced plastic 94V-0 PBT
