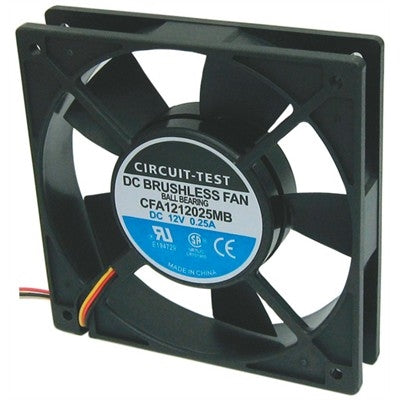

Circuit-Test CFA1212025MB 12VDC Ball Bearing 3-WIRE Fan 120mm x 120mm x 25mm 74.5CFM 43.8dB 2500RPM

12VDC fan 120mm x 25mm 74 CFM - ball bearing
Locked Rotor Alarm Signal Output (yellow wire lead): Under normal conditions a locked rotor alarm signal outputs a constant signal frequency... if the fan stops spinning or "locks", it then outputs a "LOW" condition signal. If the fan starts spinning again, the "LOW" condition signal will go away.

Features:
Dimensions: 120 x 120 x 25mm (4.7 x 4.7 x 1")
Mounting Center: 104.8mm (4.13")
Rating: 12VDC
Current: 0.25 Amps
Power: 3 W
Bearing: Ball
Speed: 2500 RPM
Noise: 43.84 dBA
Max Air: 74.5 CFM
Max Pressure: 3.8 mmH2O
Temperature: -30 to +75 C
Hours: 35000-50000
Termination: Wire leads
Weight: 150g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Glass fibre reinforced plastic 94V-0 PBT
