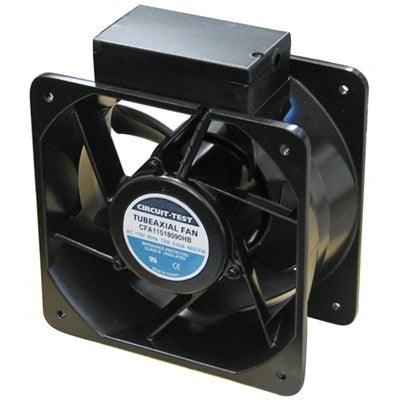

Circuit-Test CFA11518090HB 115VAC Ball Bearing Fan 180mm x 180mm x 90mm 460CFM 59dB 3400RPM, Screw Terminals

Circuit-Test CFA11518090HB 115VAC Ball Bearing Fan 180mm x 180mm x 90mm 460CFM 59dB 3400RPM, Screw Terminals

B&E Part Number:  CFA11518090HB

$153.71 CAD /Each
/Each $153.71 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 0

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

115VAC die-cast aluminum fan 180mm x 90mm 460 CFM - ball bearing

Technical Info


Features:
Dimensions: 180 x 180 x 90mm (7.125 x 7.125 x 3.6")
Mounting Center: 162mm (6.38")
Rating: 115VAC
Current: 0.63 Amps
Power: 72 W
Frequency: 50/60Hz
Bearing: Ball
Speed: 3400 RPM
Noise: 59 dBA
Max Air: 460 CFM
Max Pressure: 27 mmH2O
Temperature: -40 to +70 C
Hours: 40000
Termination: Screw Terminals
Weight: 2200g
Impeller: Glass fibre reinforced plastic 94V-0 PBT
Frame: Die-cast aluminum
