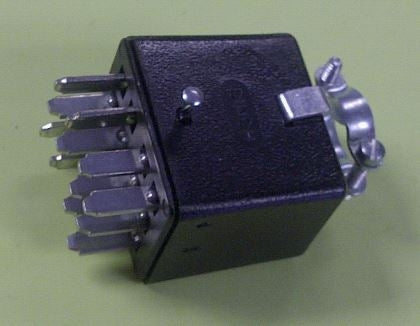

Cinch 12 Pin Inline Male Connector P312CCT

12 pin inline male connector w/housing , solder style
Brand name(s) : Cinch Jones
Series style: 300

Economically priced yet extremely durable, Jones Plugs are best utilized where mating and unmating, high current capacity and economics are crucial factors. Jones Plugs are best for applications where a high reliability is too costly and a low end stamped connector is unable to handle the current, environment, or mating and unmating.

Materials
Insulation Material : Molded monoblock, general purpose phenolic, black UL94V-1
Contact Material : Plug: Brass Socket: Phosphor bronze
Contact Plating : Cadmium / RoHS Matte Tin
Operating Temperature : Up to +105°C
Hood Material : UL 94V-0 rated thermoplastic

Electrical
Operating Voltage : 250 VAC RMS maximum
Current Rating : 10 Amps
Contact Resistance: 16 Milliohms maximum
