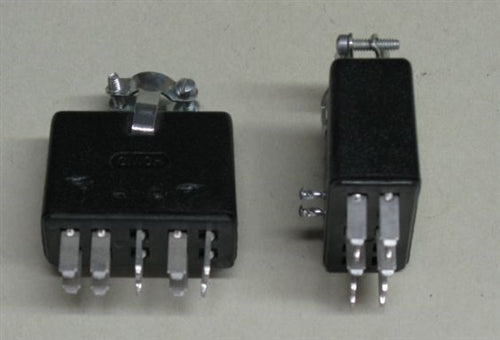

Cinch 10 Pin Inline Male Connector P310CCT *CLEARANCE*

10 pin inline male connector w/housing , solder style
Brand name(s) : Cinch Jones
Series style: 300

Image for illustrative purpose only. Sold as the individual piece

Economically priced yet extremely durable, Jones Plugs are best utilized where mating and unmating, high current capacity and economics are crucial factors. Jones Plugs are best for applications where a high reliability is too costly and a low end stamped connector is unable to handle the current, environment, or mating and unmating.

Materials
Insulation Material : Molded monoblock, general purpose phenolic, black UL94V-1
Contact Material : Plug: Brass Socket: Phosphor bronze
Contact Plating : Cadmium / RoHS Matte Tin
Operating Temperature : Up to +105°C
Hood Material : UL 94V-0 rated thermoplastic

Electrical
Operating Voltage : 250 VAC RMS maximum
Current Rating : 10 Amps
Contact Resistance: 16 Milliohms maximum
