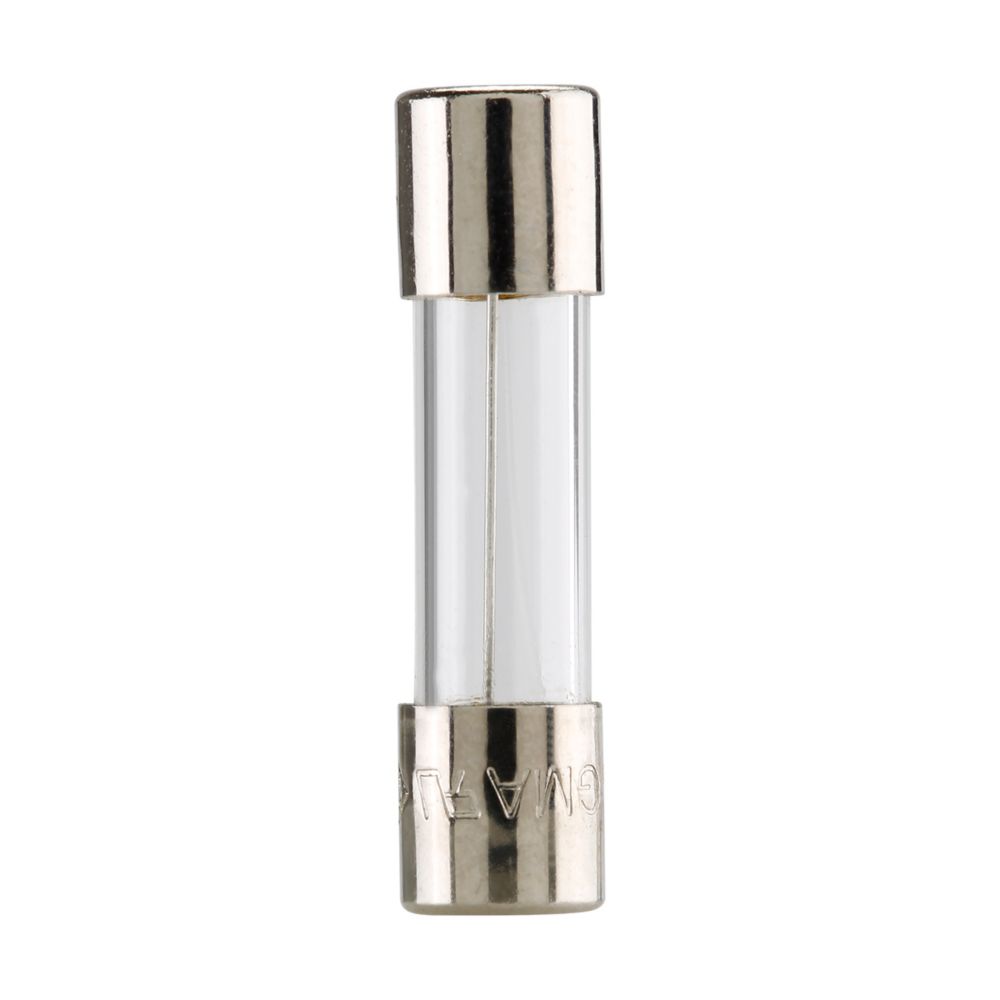

Bussmann GMA-6-R Fuse 6 Amp 125V Fast Blow Glass (5mm x 20mm) GMA6 6A 6AMP

Brand name(s) : Cooper Bussmann

Dimensions 5 x 20mm (0.197" x 0.788")

Volts 250Vac (63mA-2.5A), 125Vac (3.15-15A)

Amps 63mA-15A

IR 35A (63mA- 1A @ 250Vac,p.f. = 0.7-0.8), 10kA (63mA-6A @ 125Vac,p.f. = 0.7-0.8), 100A (1.25-2.5A @ 250Vac,p.f. = 0.7-0.8), 200A (7-8A @ 125Vac, p.f. = 1.0), 150A (10-15A @ 125Vac,p.f. = 1.0)

Agency Information CE, Std.248-14 UL Listed Guide JDYX, File E19180, 0-6A, UL Recognized, Guide JDYX2, File E19180, 7-15A, CSA Certified, Class 1422-01, File 53787, 0-6

Typical Applications Electronic Circuits

Construction Glass tube, nickel-plated brass endcaps
