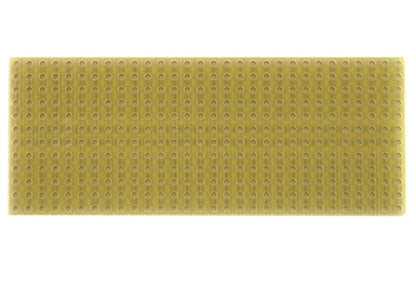

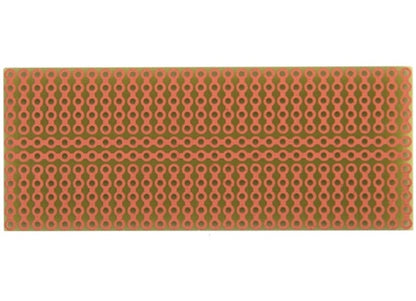

BPS Busboard SB300 Solderable PCB Breadboard for Permanent 300 Tie-Point Breadboard Projects, 31mm x 76mm (1.20" x 3")

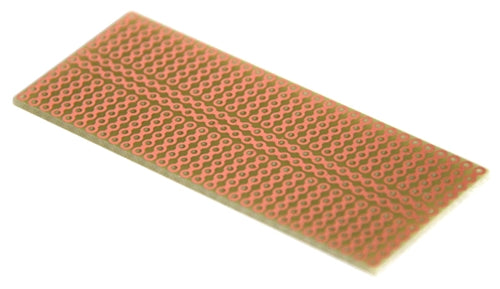

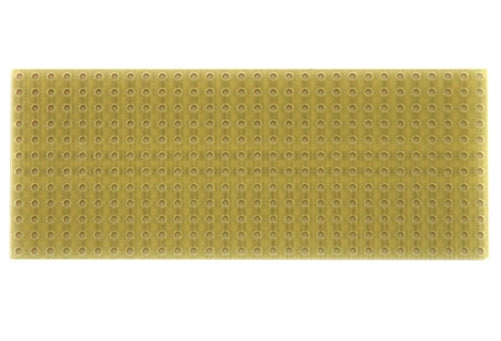

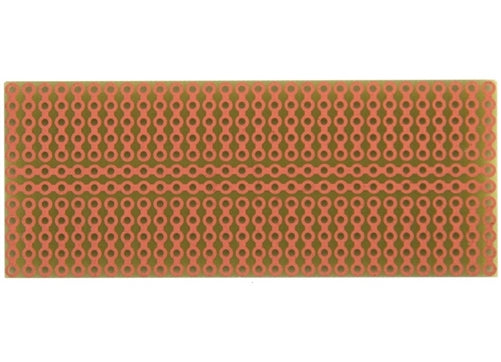

Solderable PC BreadBoard (SB300)
The SB300 Solderable PC BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout. The SB300 has the same pattern and spacing as a standard 300 connection point solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts. The SB300 has two power rails along the centerline. BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life, with an anti-tarnish protective coating for easy soldering. BPS boards are lead-free and RoHS compatible.
Manufacturer : BusBoard Prototype Systems Ltd.

Features
- Same pattern and spacing as a standard 300 connection point solderless plug-in breadboard.
- Single-sided high-quality FR4 glass-epoxy circuit board.
- 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
- 1.20" tall, 3.00" long, 1/16" thick (31 x 76 x 1.6mm)
