BPS Busboard PR3U PROTOBOARD-6H-3U, Single-Sided, 6-HOLE Strips, Accepts DIN Connectors, 100mm x 160mm (3.9" x 6.3")

ProtoBoard-6H-3U (PR3U)

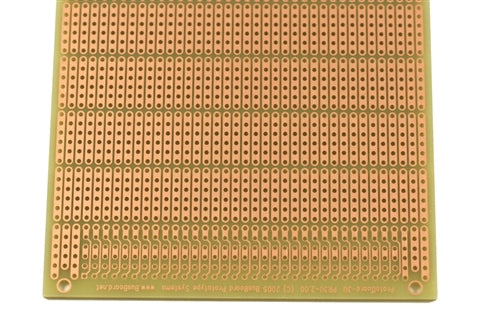

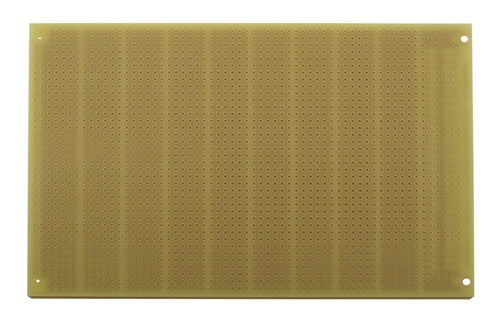

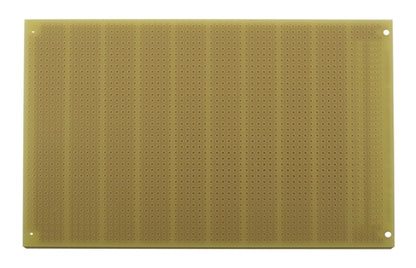

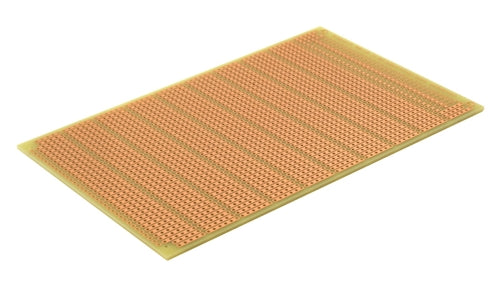

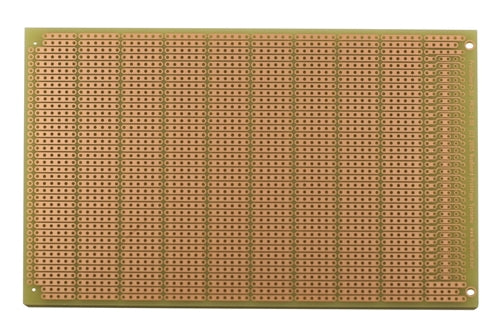

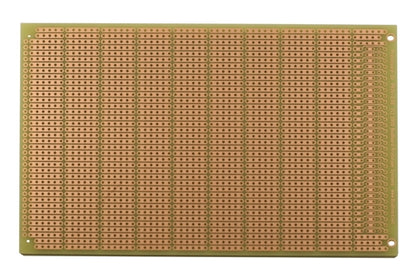

The ProtoBoard-6H-3U prototyping circuit board has a stripboard pattern that is pre-cut with 6 holes per segment. The 6-hole ProtoBoard pattern is good for integrated circuit use an it allows multiple components to be connected to each circuit junction. It is good for analog and digital use. It is a single-sided board with holes on 0.1" centers. The PR3U PCB accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board applications. Holes for ejector latches are provided.
Manufacturer : BusBoard Prototype Systems Ltd.

Features
- Convenient 6-hole ProtoBoard pattern provides an easy way to connect parts to IC's.
- Single-sided high-quality FR4 glass-epoxy circuit board.
- 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
-38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
- Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm)
