BPS Busboard PR1590BB 2-HOLE Strip Protoboard for Hammond 1590BB Enclosure, Single-Sided, 81mm x 108mm (3.20" x 4.25")

ProtoBoard for 1590BB Box (PR1590BB)

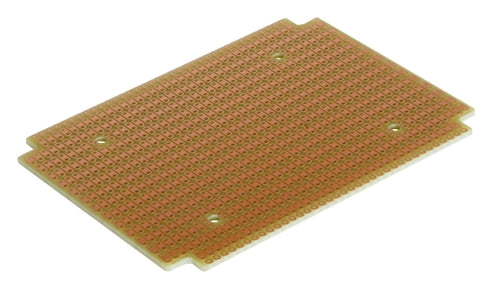

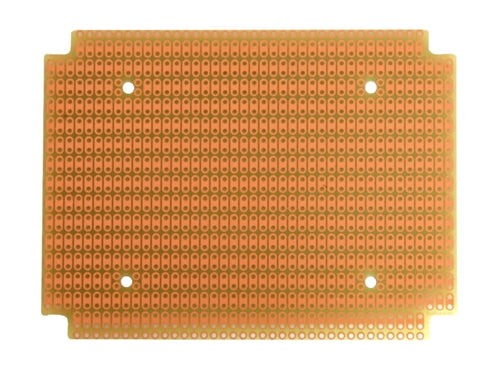

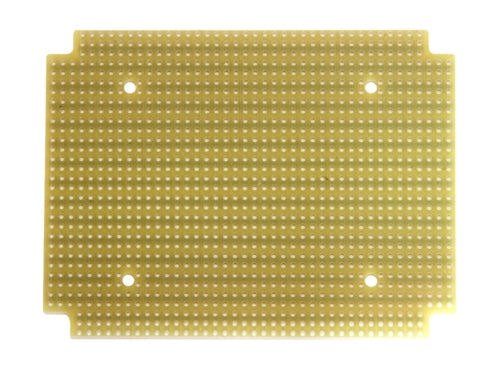

The PR1590BB is a prototyping circuit board (PCB) designed to fit the Hammond 1590BB die-cast aluminum enclosure. It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1590BB enclosure.
Manufacturer : BusBoard Prototype Systems Ltd.
Manufacturer part# PR1590BB

Features
- Single-sided high-quality FR4 glass-epoxy circuit board.
- Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
- 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
- 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes.
- PCB Size 3.20 x 4.25 in (81.3 x 108.0 mm)
