BPS Busboard JRG01-EXP2 Blinky Lights Kit Expansion #2, 10 LED Flashing Circuit and More for JRG01-KIT

Blinky Lights Expansion #2 - 10 LED I.C. Chaser
Manufacturer part# JRG01-EXP2
A 10 LED flashing circuit and more for Junior Genius Kit #1 Blinky Lights

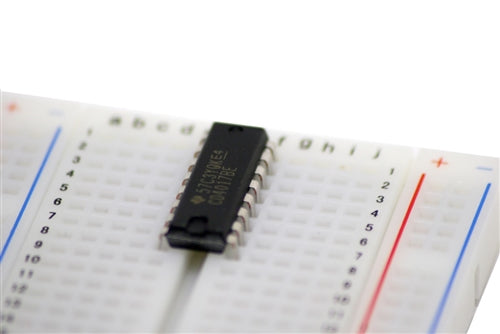

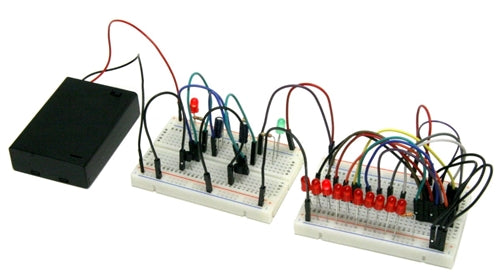

The 10 LED Chaser lights up 10 LEDs, one at a time. When the last LED turns on and off, it starts again with the first LED. The heart of the LED Chaser is an integrated circuit (I.C.) with 10 outputs to flash the LEDs. A lesson on integrated circuits explains how they are connected. This kit also shows how make a traffic light and a back and forth 5 LED flasher (Knight Rider car and Cylon eyes style flashing LEDs). The circuit show how diodes are used to make electricity flow in one direction only to get different flash patterns. A BB400 breadboard is provided to provide extra room for the 10 LED counter circuit.

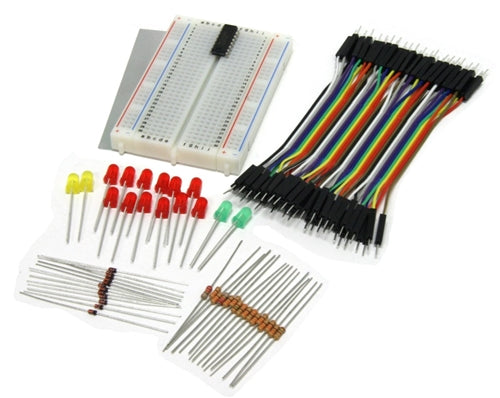

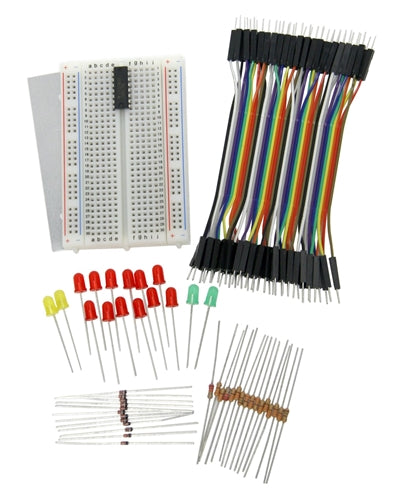

Features:
3 new types of circuits: 10 LED Chaser, 5 LED Back-and-Forth, 3 LED Traffic Light
Additional BB400 BreadBoard to provide more circuit building room
40 Male-to-Male ZipWiresâ„¢
16 LEDs (12 Red, 2 Green, 2 Yellow)
16 resistors and 12 diodes
