B&B 485LDRC9 RS232 to RS485 Converter DIN Rail Mount

B&B 485LDRC9 RS232 to RS485 Converter DIN Rail Mount

B&E Part Number:  485LDRC9

$268.72 CAD /Each
/Each $268.72 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 1

Status: In Stock
Spend over $249 for Free Shipping
Conditions Apply
View full details

Product Description

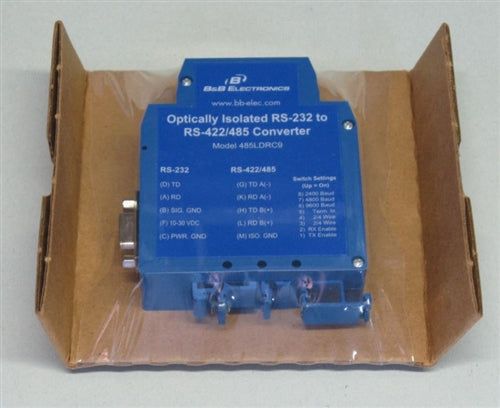

The 485LDRC9 is an optically isolated RS232 to RS422 / 485 converter. RS-232 signals interface through a DB9 female connector or a terminal block. RS422 / 485 signals and power inputs connect to the terminal block. Terminal blocks are arranged to allow easy wiring inside a control panel.
Brand name(s) : B&B Electronics

Features
  • Built-in Automatic Send Data Control circuitry allows quick set-up and eliminates the need for external software drivers to control handshake signals.
  • The converter operates on externally sourced 10-30 VDC power.
  • Optically isolated data lines (2,000 V on input/output) with 500W surge suppression ensure that connected equipment is protected even in the harshest environments.
  • DIN rail mount design snaps on standard 35mm rail and a small form factor fits neatly into tight cabinets.
  • Ideal for critical industrial communications, factory automation, in-cabinet conversion, warehouse automation, security, and many other applications.

Technical Info


Operational Reliability for Critical Applications
