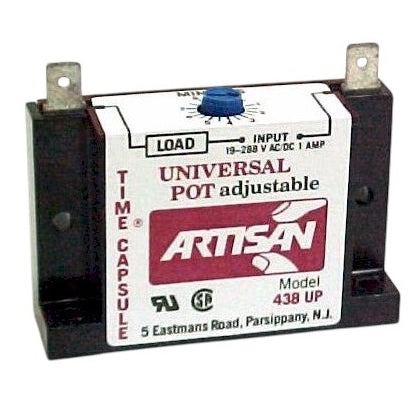

Artisan 438UP Universal Potentiometer Time Capsule

The model 438UP (Universal Potentiometer Adjustable Time Capsule) is an all Solid State timer providing Delay on Make control to any load operating from 19 to 288V AC or DC. When power is applied, the 438UP remains in the off state. When the preset time period has elapsed, the 438UP switches on allowing the load to energize. The load remains energized as long as power is applied. Power must be removed for at least 50 milliseconds to reset timer.

Function: Delay On Make Industries: HVAC, Elevator-Escalator

• Operating Voltage: 19-288VAC or DC, non polarized input.
• Frequency: 50 / 60 Hz.
• Output: 10 milliamperes to 1 ampere inductive Inrush to 25 amperes for 8 milliseconds.
• Timing Mode: Delay On Make.
• Timing Range: 1 seconds to 8 minutes.
• Timing Adjustment: Potentiometer located between terminals.
• Timing Repeatability: +/- 1% at stabilized operating voltage and temperature.
• Transient Protection: 8 Joules.
• Operating Temperature: -20 deg C to 85 deg C.
