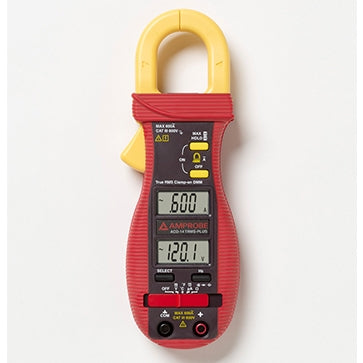

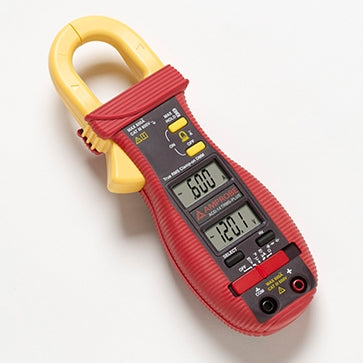

Amprobe ACD-14 Trms-Plus Dual Display Digital Clamp Multimeter

Amprobe ACD-14 Trms-Plus Dual Display Digital Clamp Multimeter

Call to Order. Calgary: (403) 243-7211 / Saskatoon: (306) 249-5144

B&E Part Number:  ACD14TRMS-PLUS

$389.01 CAD /Each
/Each $389.01 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 1
B&E Saskatoon: 1

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
Sold and Shipped to Canadian Customers Only
View full details

Product Description

Amprobe ACD-14 TRMS-PLUS dual display clamp multimeter with temperature ,True RMS measurements

Works as both an HVAC multimeter and electrical multimeter with a versatile set of features, including microamps, capacitance, frequency and temperature with included thermocouple.

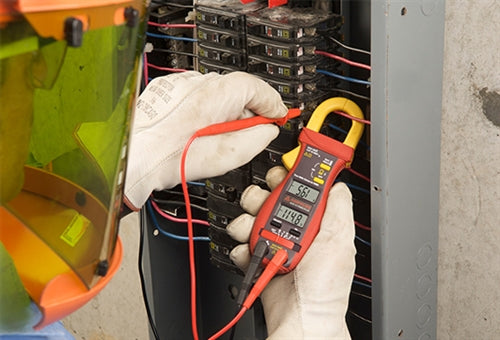

The dual displays show amps and volts simultaneously : useful for measuring voltage drop under load. The thinner jaws of this digital clamp multimeter enable access to tight measurement areas and still handles conductors up to 1 (25 mm).

Features:
  • Measures AC Current to 600A and AC/DC Voltage to 600V
  • Measures frequency, capacitance to 3000µF, and resistance to 40MΩ
  • Measures temperature with K-type thermocouple probe
  • Includes micro amps measurement for testing flame sensors
  • Diode test quickly finds voltage drops
  • Continuity beeper detects opens and shorts
  • Auto ranging instantly selects correct range
  • Hold and maximum reading functions
  • New thin jaws, 5mm thinner than standard digital clamp meters make it easier to access conductors in tight spaces
  • Accommodates conductors up to 25 mm (1.0") in diameter
  • Auto power off and low battery indication helps you make the most of battery life
  • Rubber, over-molded case absorbs shock

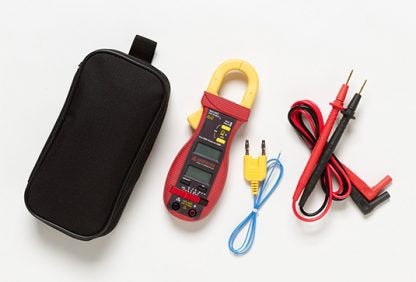

  • Includes test leads, battery (installed), K-type thermocouple with banana plug, soft carrying pouch, and user manual

Technical Info


Specifications
Display: 3-3/4 digits 4000 counts, dual LCD displays
Update rate: 3 per second nominal
Polarity: Automatic
Operating temperature: 0°C to 40°C (32°F to 104°F)
Power supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032
Warranty : 1 year
Warranty Policy: The meter has to be within the warranty period with a proof of purchase
