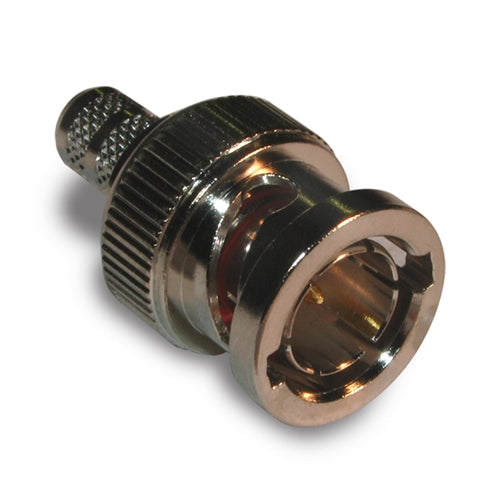

Amphenol 112507 BNC Crimp-On Male Connector for RG59, 75 Ohm, 20AWG Contact

BNC Straight Crimp Plug RG-59 20AWG RG-59DS 75 Ohm

Body Finish: Nickel

Body Material: Brass

Cable Group: G

Cable Type (Terminates To): RG-59 20AWG, RG-59 Double Shield, RD-59, Belden 8281, Belden 9141, Belden 9231, Belden 88281, Canare LV-775

Contact Finish: Gold

Contact Material: Brass

Contact Termination: Crimp

Country of Origin: VN

Coupling Mechanism: Bayonet

ECCN: EAR99

Frequency (Max GHz): 4

Gender: Plug

HTS Code: 8536.69.4010

Impedance (Ohms): 75

Insulator Material: Delrin

IP Rating: Not Rated

Isolated: No

Low PIM: No

Mating Cycles (Min): 500

Mil Qualified: Not Mil Qualified

Non Magnetic: Contains Magnetic Materials

Orientation: Straight

Panel Mounting Feature: Not Applicable

PFAS: PFAS Status Undetermined

Ports: 1 (Single Port)

Size Category: Miniature

Temp (Max Degrees Celsius): 85

Temp (Min Degrees Celsius): -40

Termination Style: Cable - Crimp
