AMP TE 91285-1 D-Sub Multi-Bit Insertion/Extraction Tool for Use with HD-22 and HD-20 Contact Crimp Pins

Insertion / extraction tool set 91285-1
The tool is designed to insert and extract HD-22 and HD-20 contacts used in Amplimite High Density (HD) Connectors
Brand names(s) : Amp, Tyco (TE)

Features

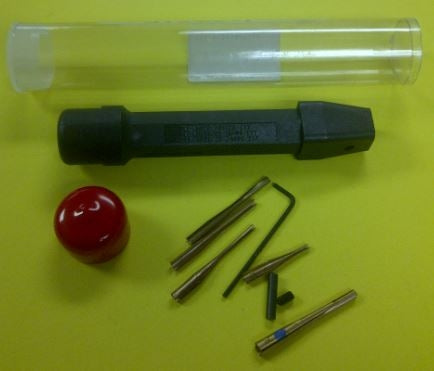

The insertion / extraction tool consists of a handle, a cap, six insertion/extraction tips, a plug, and a [.050 in.] hex wrench. The handle of the tool provides storage for the tips, plug, and hex wrench. The insertion/extraction tips convert the tool for the appropriate product and are used to insert or extract connector contacts. Each tip is color coded according to specific type and wire size. The plug is inserted into the widest end of the tip to prevent damage to the tip when it is secured in the tool handle. The hex wrench is used to tighten the setscrew which secures the tip in the tool handle.

Includes the following:
Wire size(awg) / Tip color code / Part number
HD-20 28-20 Yellow (Insertion) 543382-5
HD-20 24-18 Red (Extraction) 1-543382-0
HD-20 28-24 Brown (Extraction) 1-543382-1
HD-20 Posted Blue (Extraction) 543382-6
HD-20 Posted Black (Insertion) 543382-7
HD-22 28-22 Green (Insertion / Extraction) 543382-8
