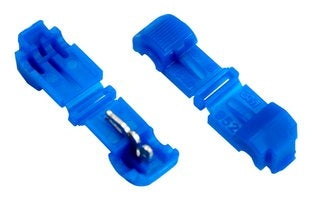

3M 952x Scotchlok Blue Female Disconnect T-Taps 18-14AWG, Nylon Insulated, Self-Stripping, 50/Pack

3M 952x Scotchlok Blue Female Disconnect T-Taps 18-14AWG, Nylon Insulated, Self-Stripping, 50/Pack

B&E Part Number:  952X

$47.52 CAD /Pkg
/Pkg $47.52 CAD
Sale Product unavailable
Shipping calculated at checkout.
Availability:
B&E Calgary: 3
B&E Saskatoon: 0

Status: In Stock
Spend over $299 for Free Shipping This item qualifies  |  Conditions Apply
View full details

Product Description

3M™ Scotchlok™ female quick slide disconnect, t-tap nylon insulated self-stripping, 18-14 awg
Use to electrically tap into a wire in mid-span without cutting or stripping the wire. Connector then mates with a .250 inch (6.35 millimeter) male tab, making a reusable quick-connect wiring termination. T-tap disconnect. Maximum insulation O.D.diameter of 0.150 inches (3,81 mm) and a operating temperature of 221F /105 C.
Brand name(s) : Scotch, 3M Tape

Sold as a package of 50 pieces

Technical Info


Specifications
Agency Approvals‎ : ‎ UL and CSA
Barrel Style‎ : ‎ Insulated Self-Stripping
Conductor Sizes‎ : ‎ 18 - 14 AWG
Connection Type‎ : ‎ T-Tap
Connector Style‎ : ‎ Insulation Displacement
CSA File Number‎ : ‎ LR32411
Family‎ : ‎ IDC for Electrical Applications
Fastener Orientation‎ : ‎ Female
Flame Retardant‎ : ‎ Yes
Insulation Material‎ : ‎ Nylon
Maximum Operating Temperature (Celsius)‎ :105 Degree Celsius
Maximum Operating Temperature (Fahrenheit)‎ : 221 Degree Fahrenheit
Maximum Wire Gauge : 14 AWG
Minimum Wire Gauge : 18 AWG
Packaging‎ : ‎ Box
Pad Width‎ : 0.25 Inch
Product Family : IDC for Electrical Applications
Trademark‎ : Scotchlok
UL File Number‎ : E70512
