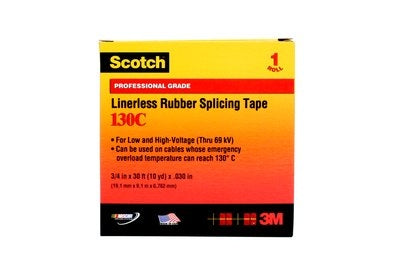

3M 130C Scotch Linerless Rubber Splicing Black Electrical Tape, Self-Bonding, 3/4" Wide x 30' Long

3/4" x 30ft Scotch ® linerless, self bonding rubber splicing Tape , 69KV rated
Brand name(s) : Scotch, 3M Tape

Scotch ® Linerless Rubber Splicing Tape 130C is a highly conformable, linerless, ethylene rubber (EPR), high-voltage insulating tape, formulated to provide excellent thermal dissipation of splice heat. The tape is designed for use in splicing and terminating wires and cables. Rated up to 90 ÌŠC continuous operating temperatures and short-term 130 ÌŠC overload service. The tape has excellent physical and electrical properties, which provide immediate moisture seals and void-free build-ups. This product can be used for low and high-voltage (through 69 kV) applications.

Features:
• High thermal conductivity.
• Ethylene propylene base.
• Excellent physical and electrical properties.
• Designed to insulate splices and terminate cables whose overload temperatures can reach 130 ÌŠC.

Physical and electrical properties unaffected by degree of stretch
• Compatible with common, solid dielectric cable insulation
• Uniform tape unwind from roll
• Small roll size (O.D.)
• Five-year shelf life
• Stable over wide application temperature range
• Weather resistant Applications
• Primary insulation for splicing all types of solid dielectric insulated cables through 69 kV
• Primary insulation for building stress cones on all types of solid dielectric insulated cables up to 35 kV
• Jacketing (secondary insulation) on high-voltage splices and terminations
• Moisture-sealing electrical connections
• Bus bar insulation
• End-sealing high-voltage cables
• Motor leads
• Jacket repairs


Typical Data/Physical Properties
Color : Black
Thickness : 30 mils
(ASTM-D-4325) (0,762 mm)
Tensile Strength : 250 psi
(ASTM-D-4325) :(1,72 MPa)
Ultimate Elongation : 850%
(ASTM-D-4325)
Operating Temperature : 90 ÌŠC
(ASTM-D-4388) (194 ÌŠF)
Emergency Overload : 130 ÌŠC
(ASTM-D-4388) (266 ÌŠF)
Thermal Conductivity (23°C)
(ASTM-C-518) 0.3 W/m ÌŠC
Ozone Resistance : Pass
(ASTM-D-4388)
Heat Resistance : Pass
(ASTM-D-4388)
UV Resistance :Pass
(ASTM-D-4388)
Physical Properties
Dielectric Strength (ASTM-D-4325)
Original : 750 V/mil
(29,5 MV/m)
24 hrs. in H2O : 750 V/mil
(29,5 MV/m)
96 hrs. @ 23 ÌŠC 96% RH : 730V/mil
(28,7 MV/m

The high-voltage corona resistant tape must be supplied without a liner, be based on ethylene propylene rubber, and be capable of emergency operating cable temperature of 130 ÌŠC. The tape must be capable of being applied in either stretched or unstretched conditions without resulting in loss of either physical or electrical properties. The tape must not split, crack, slip, or flag when exposed to various environments (indoor or outdoor). The tape must be compatible with all synthetic cable insulations and have a shelf life of five years.

Engineering/Architectural Specification
Splicing and terminating solid dielectric cable shall be done in accordance with drawings engineered by the splice material manufacturer. All splices and terminations shall be insulated using Scotch® Electrical Tape 130C.
Installation

Technique
This tape should be applied in successive half-lapped level wound layers until desired build-up is reached. It should be applied like any rubber tape; that is, the side of the tape wrapped inside the roll should be applied outside on the splice (tacky side up). This will help prevent the roll from getting progressively further away from the work area. To eliminate voids in critical areas, highly elongate 130C tape. Stretch tape in critical areas just short of the breaking point; doing so will not alter its physical or electrical properties. In less critical areas, less elongation may be used. The tape should be stretched to a minimum of 3/4 its original width. Always attempt to half-lap to produce a uniform buildup. When using 130C tape for splicing cable above 15 kV, always highly elongate the tape throughout the entire splice.

Shelf Life
The 130C tape has a 5-year shelf life (from date of manufacture) when stored under the following recommended storage conditions. Store behind present stock in a clean dry place at a temperature of 70 ÌŠF (21 ÌŠC) and 40% to 50% relative humidity.
